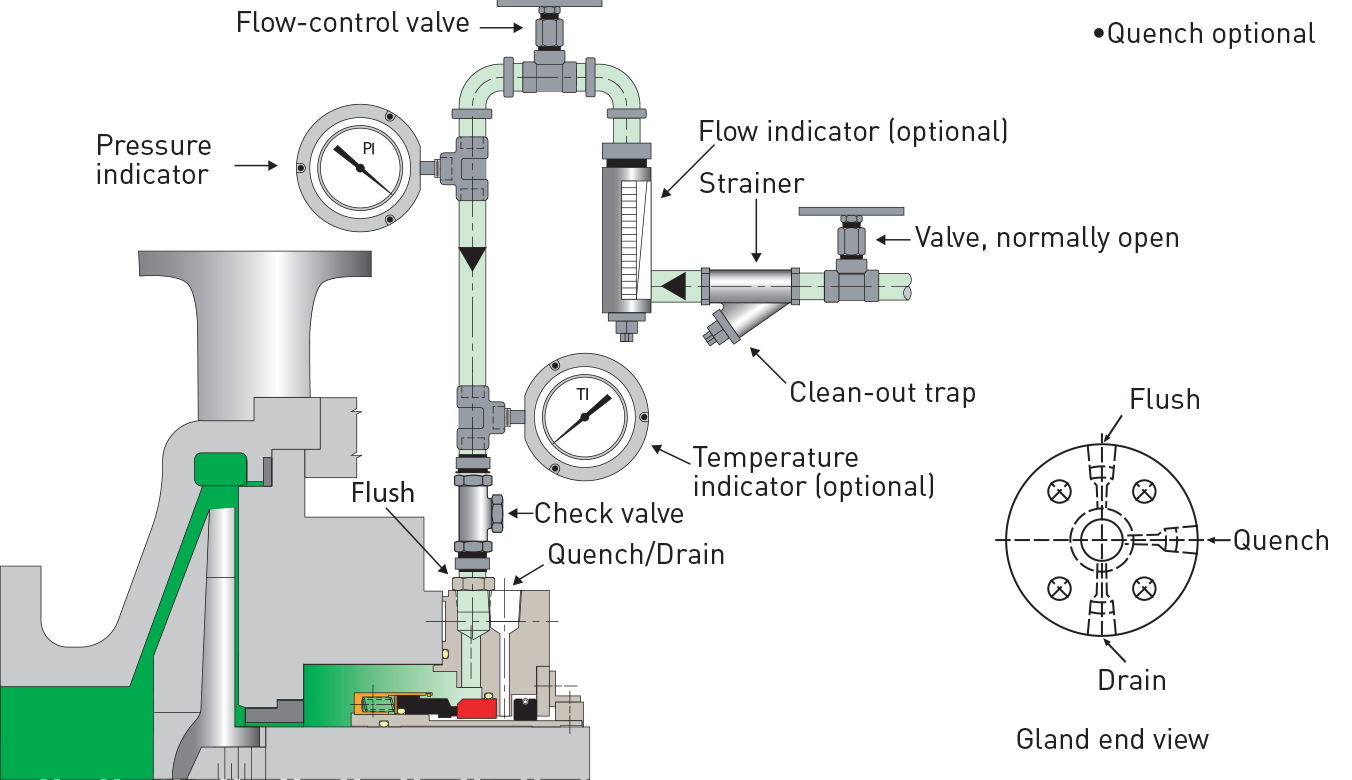

Plan 32 (External Flush)
Why do we use it?
- When the seal heat requires a continuous flush flow to cool the seal
- When the cooling requirements are too high for a heat exchanger
- When the process fluid is high in abrasives
- When the process fluid is a poor lubricant
- When an affordable supply of clean pressurised fluid is available
Advantages:
The external flush fluid, when selected properly, can result in vastly extended seal life.
General:
When an outside flush source is used, concerns regarding product dilution and/or economics must be considered by the user.
