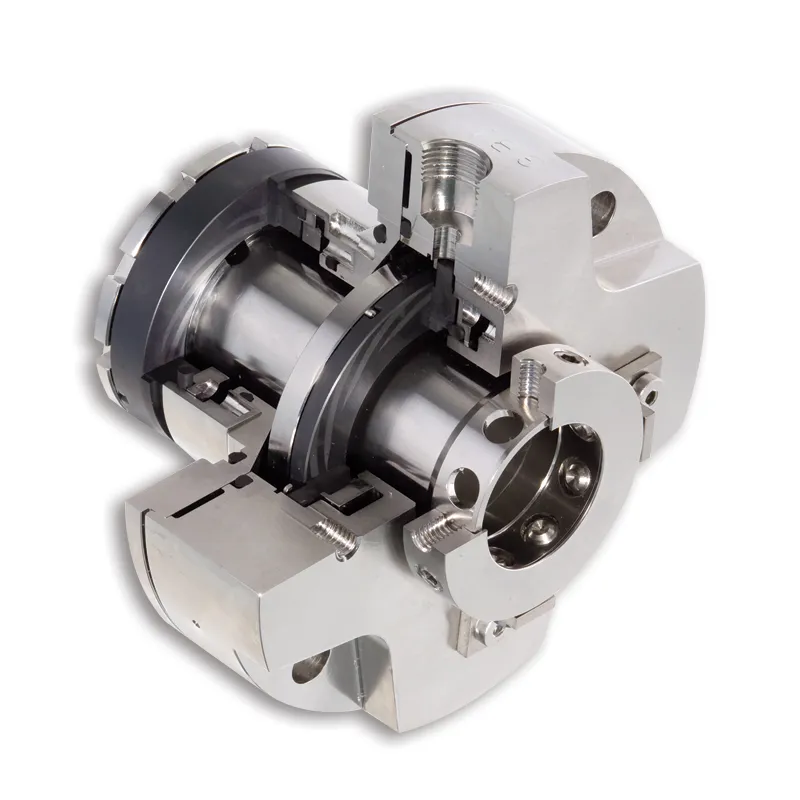

Type 2874
Non-contacting Dual Gas Seal Cartridge for Pumps
John Crane’s Type 2874 is a range of API-qualified, non-contacting dual- pressurised seals for non-turbo, ANSI and DIN “C” large-bore rotating equipment. They are built to deliver reliable performance across a wide range of applications and to provide peace of mind in volatile, hazardous environments across a wide range of industries.
This mechanical seal utilises industry-leading internally pressurised spiral-groove technology to create a non-contacting solution. It can handle slurries and minimise solid build-up, whilst still maintaining a reverse pressure capability.
It is typically used in oil and gas, petrochemical and chemical industries.
Recommended for You
Features
- California Residents: PROPOSITION 65 WARNING
- ID to OD pumping spiral groove arrangement places process fluid at the OD of the inboard seal.
- Eliminates low flow regions in close proximity to inboard seal
- Reduces dewatering and hang-up
- Rotating mating ring imparts centrifugal flow to fluid in the seal chamber, which keeps fluid moving and helps prevent solids from falling out of solution.
Parameters
- Temperature Limits
- -34°C to 260°C / -30°F to 500°F
- Pressure Limits
- Vacuum to 41 bar(g) / 600 psi(g) barrier pressure Max
150 PSI Differential pressure - Speed Limits
- 1450 rpm min./3600 rpm max
Recommended Applications
- Process pumps
- Other rotating equipment
- High Duty Pumps
