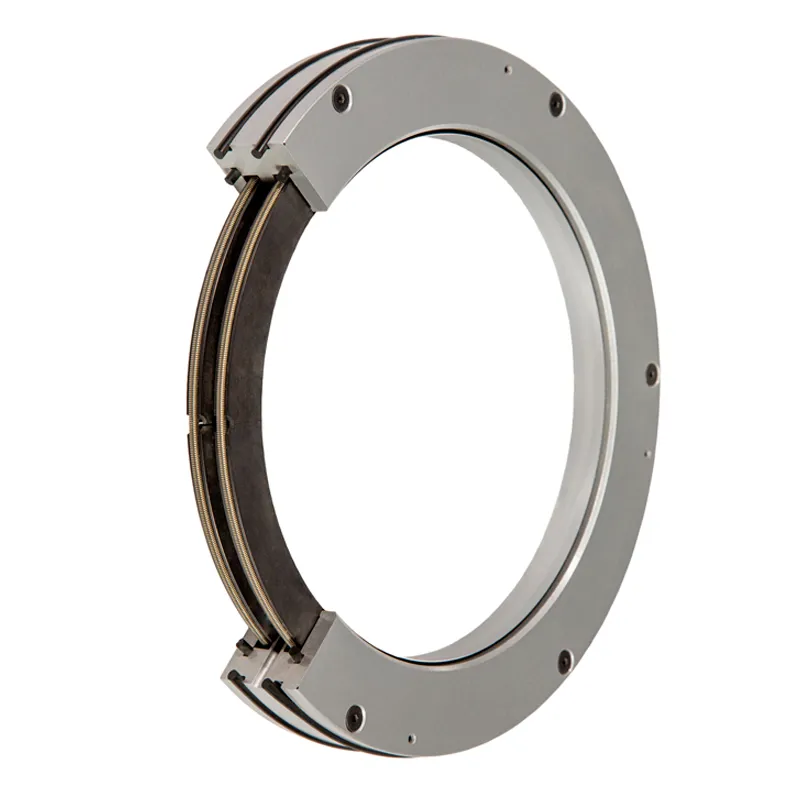

Type 93FR
Separation Seal (Non-contacting Technology)
The Type 93FR is a non-contacting carbon bushing designed to protect dry gas seals from bearing oil ingress. Segments are specifically designed to prevent oil migration. Separation gas (normally nitrogen or air) is injected between the two segmented bushings, effectively creating a pressure barrier between the bearing and dry gas seal cavity. Advanced materials and design eliminate wear under normal running, promoting long service life.
×
Recommended for You
Features
- California Residents: PROPOSITION 65 WARNING
- Non-contacting for longer life and improved reliability, low heat generation.
- Runs at low operating pressure differential enabling low gas consumption.
- Specially designed segments further minimize gas consumption.
- Universal design, independent of shaft rotation.
- Will retrofit many traditional carbon bushing rings.
- Suitable for running with nitrogen separation gas irrespective of dew point.
- Self-centering design minimizes wear even during upset conditions.
Parameters
- Temperature Limits
- -40°F to 450°F/-40°C to 230°C
- Speed Limits
- 430fps/130m/s
- Size Limits
- 1.57 inch to 14.76 inch / 40mm to 375mm, with sleeve to fit all metric or imperial shafts
Recommended Applications
- Centrifugal compressors
- Other compressors
- IG compressors
- Turbo compressor machinery
- Natural gas pipeline
- Natural gas/hydrogen refueling stations
- Oil and gas (refineries)
- API 692
- Propylene and ethylene compressor
