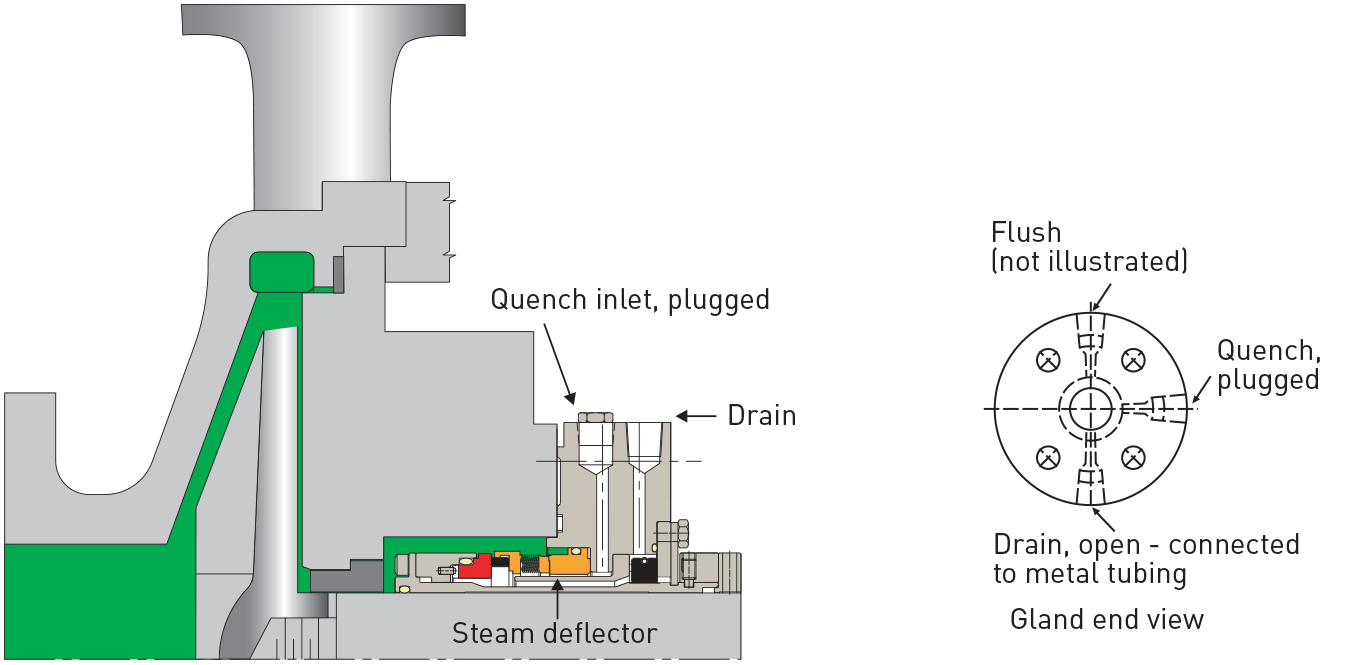

Plan 61 (Quench Connection)
Why do we use it?
- Any arrangement 1 seal which may have use for a quench, or leakage collection system in the future
- On an arrangement 3 seal which may run hot enough that there is a risk of the barrier fluid coking/degrading
General:
Allows the user to connect tubing to the drain port and direct leakage to the collection point. May be used with or without a steam deflector.
Seals applicable to this plan
Type 1604
Single Stationary API 682 Metal Bellows Cartridge Seal Type C, Arrangement 1
The Type 1604 high-temperature, high-performance Type C, Arrangement 1, API 682 qualified cartridge seal is designed for high-temperature applications such...
Type 1604HTC
Single Stationary Welded Metal Bellows API 682 Cartridge Seal Type C, Arrangement 1
The Type 1604HTC is an API 682 qualified single stationary bellows cartridge seal Type C, Arrangement 1. The Type...
Type 1670
API 682 Category II and Category III, Type B, Arrangement 1 Single Rotating Metal Bellows Cartridge Seal
The Type 1670 is a factory pre-set edge-welded metal bellows API 682 qualified cartridge seal with Alloy C-276 (UNS N10276)...
Type 2609HTC/3609HTC Metal Bellows Cartridge Seal
Dependable API 682 Cartridge Seals
The Type 2609HTC and Type 3609HTC are dependable API 682 cartridge seals that utilize two impressive design innovations by...
Type 2609HTL/3609HTL Metal Bellows Seal
Dual Unpressurized and Pressurized Rotating Bellows Cartridge Seals (API 682 Type C, Arrangement 2 and 3)
Type 2609HTL is a dual unpressurized rotating bellows cartridge seal API 682 Type C, Arrangement 2. Type 3609HTL is a...
Type 3604/3604HTC/3604HTCDP
API 682 Type C, Arrangement 3, Stationary Metal Bellows Cartridge Seal
The Type 3604/3604HTC/3604HTCDP is a highly reliable dual face-to-face stationary cartridge seal for high-temperature refinery services that is fully API...
Type 1648 O-Ring Pusher Seal
API 682-qualified, Single Cartridge, Type "A" O-ring Pusher Seal
The Type 1648 is a high-performance single cartridge pusher seal designed to help prevent emissions leakage in most refinery applications....
Type 5610/5610Q/5610L O-Ring Pusher
Universal Cartridge Seal Family — Single Cartridge O-Ring Seal
The first truly universal cartridge seal, the Type 5610 will change your approach to sealing. Since the 5600 Series components...
Type 5610V/VQ/VP O-Ring Pusher
Universal Cartridge Ear Drive O-Ring Seal Head
The specially engineered, fully interchangeable ear drive O-ring seal head extends the functionality of the 5600 series product line for standard ANSI and large bore…
Type 5615/5615Q/5615L
Universal Cartridge Seal Family — Single Cartridge Metal Bellows Seal.
The 5600 Series is the first truly universal cartridge seal — and the modular family concept of John Crane's Universal Cartridge will change your approach…
Type 5610D/5620D O-Ring Pusher
Universal Cartridge Seal Family — Wet/Dry-running Seal
The specially engineered, fully interchangeable wet/dry-running seal head extends the functionality of the 5600 product line for standard ANSI...
