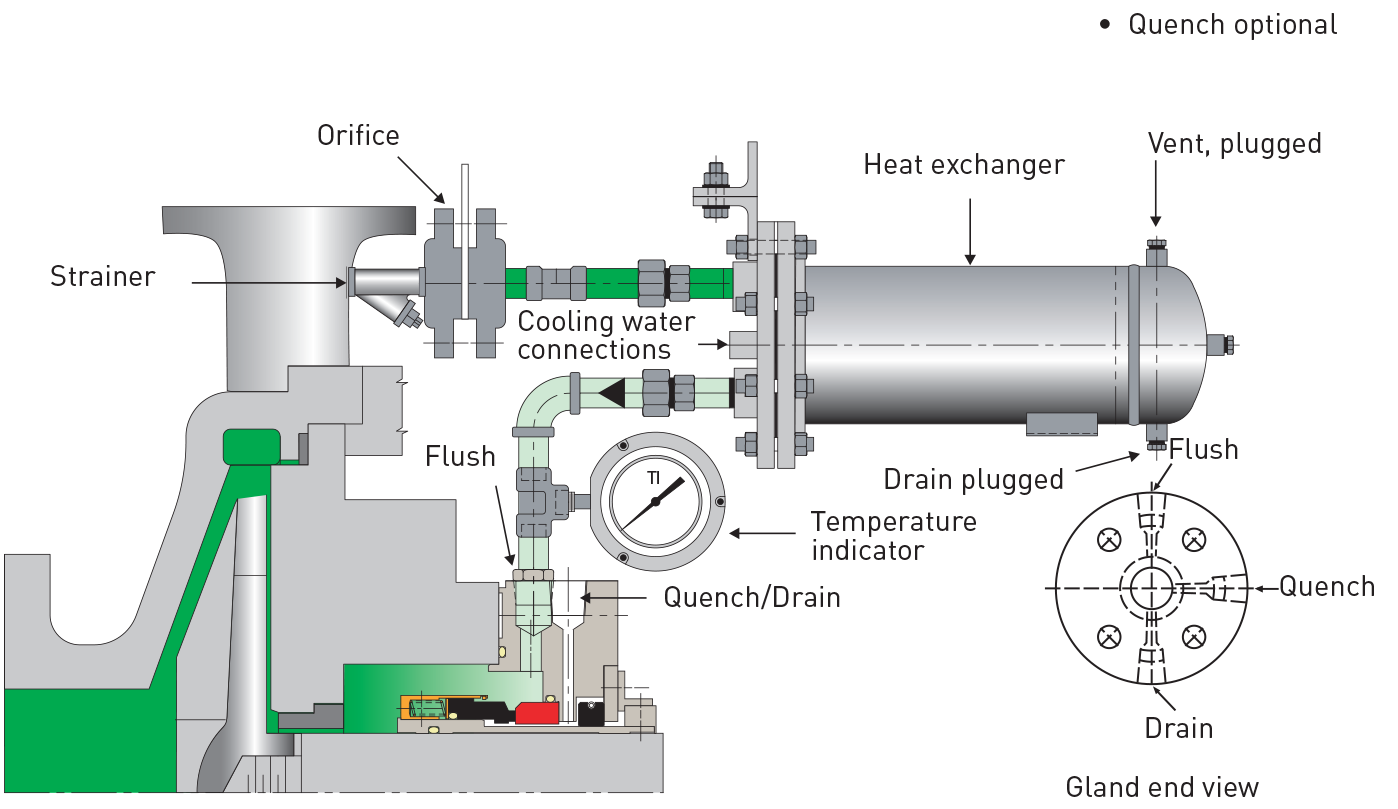

Plan 22 (Strained Cooled Flush)
Why do we use it?
- When the seal heat requires a continuous flush flow to cool the seal
- When the process fluid is too hot for good seal operation without additional cooling
- When shaft speeds are too low to circulate a fluid with a seal pumping ring
- When the process fluid contains some abraves which must be removed for good seal operation
Advantages:
No product contamination, and solids are removed from the flush stream keeping the seal clean.
Disadvantages:
Plan 22 should be used with caution as strainers can clog and result in seal failure.
General:
If the seal is set up with a distributed or extended flush, the effectiveness of the system will be improved. This plan should be equipped with a differential pressure indicator or alarm to alert the user that the strainer is clogged.
NOTE:
API 682 4th edition comments “This plan has not been proven to achieve a 3-year operating life.”
