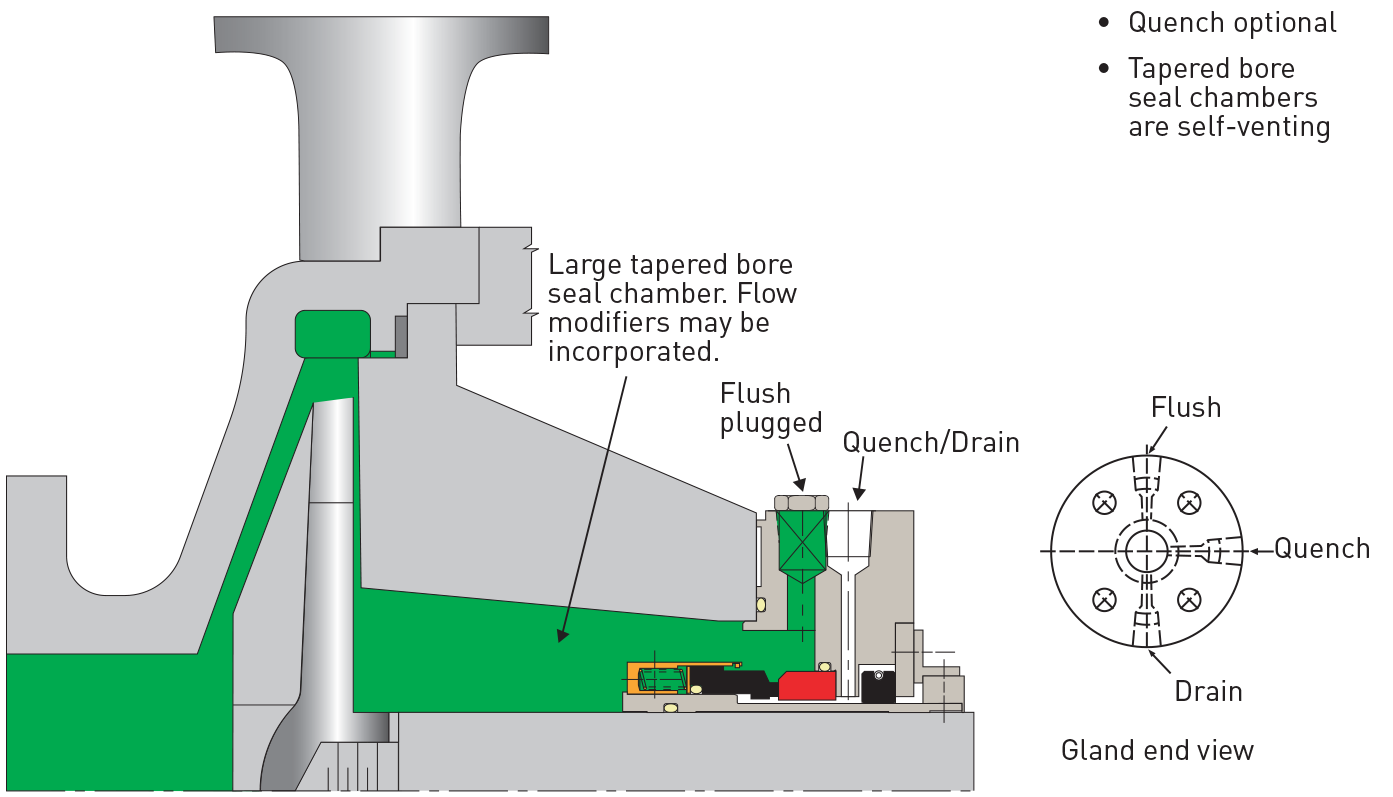

Plan 03 (Tapered Seal Chamber)
Why do we use it?
- When the seal heat requires only a very small flow to cool the seal
- When solids may collect in a traditional seal chamber
Advantages:
Circulation for cooling and venting of the seal is achieved by design of the seal chamber geometry or flow enhancement features.
General:
Commonly used on ASME/ANSI or specialized ISO 3069 tapered bore seal chambers, without a throat bushing, for applications where there is not significant heat generated by the seal or where solids may collect in a traditional seal chamber.
