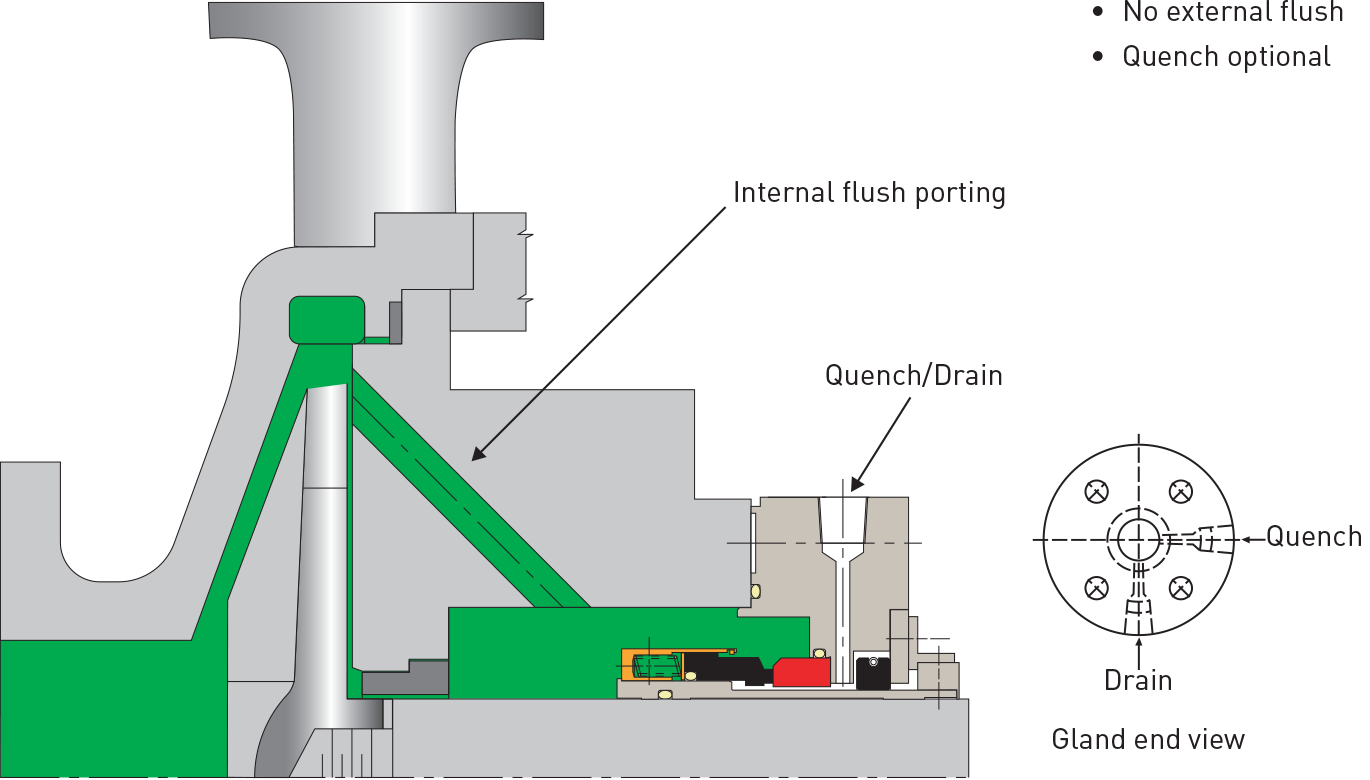

Plan 01 (Internal Flush)
Why do we use it?
- When the seal heat requires a small continuous flush flow to cool the seal
- When the product is clean and free from abrasives (as dirty products can clog the internal line)
- When low temperatures could cause the prodcut to freeze or become too viscous with exposed piping.
- Not recommended on vertical pumps.
Advantages:
No product contamination and no external piping, which is advantageous on highly viscous fluids at lower temperatures to minimize the risk of freezing that can occur with exposed piping.
General:
This flush plan should only be used for clean products as dirty products can clog the internal line. Not recommended on vertical pumps.
Seals applicable to this plan
Type 1604
Single Stationary API 682 Metal Bellows Cartridge Seal Type C, Arrangement 1
The Type 1604 high-temperature, high-performance Type C, Arrangement 1, API 682 qualified cartridge seal is designed for high-temperature applications such...
Type 1604HTC
Single Stationary Welded Metal Bellows API 682 Cartridge Seal Type C, Arrangement 1
The Type 1604HTC is an API 682 qualified single stationary bellows cartridge seal Type C, Arrangement 1. The Type...
Type 1670
API 682 Category II and Category III, Type B, Arrangement 1 Single Rotating Metal Bellows Cartridge Seal
The Type 1670 is a factory pre-set edge-welded metal bellows API 682 qualified cartridge seal with Alloy C-276 (UNS N10276)...
Type 2609HTL/3609HTL Metal Bellows Seal
Dual Unpressurized and Pressurized Rotating Bellows Cartridge Seals (API 682 Type C, Arrangement 2 and 3)
Type 2609HTL is a dual unpressurized rotating bellows cartridge seal API 682 Type C, Arrangement 2. Type 3609HTL is a...
Type 2609HTC/3609HTC Metal Bellows Cartridge Seal
Dependable API 682 Cartridge Seals
The Type 2609HTC and Type 3609HTC are dependable API 682 cartridge seals that utilize two impressive design innovations by...
