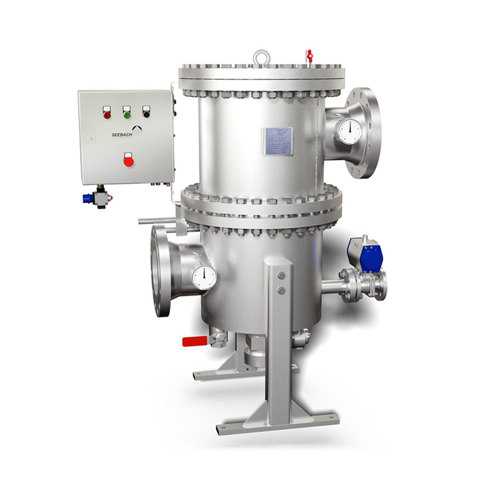

Fully Automatic Filter Systems
John Crane’s Seebach® fully automatic filter systems are self-cleaning (back-flushable) filters that have their own control technology and ensure a continuous operation of the filter. This can be backwashed with filtrate as well as foreign media or sticky dirt can be efficiently removed from the system using a squeegee technique.
Recommended for You
Features
| ID | 3218 |
| Filter rating | as requested* |
| Max. flow rate | 1500 I/min |
| Input/Output | DN100 PN40 |
| Max. operating pressure | 40 bar |
| Max. operating temperature | 50 °C |
| Backflushable | Yes |
| ID | 3219 |
| Filter rating | 50 -100 µm |
| Max. flow rate | 3000 - 5000 I/min |
| Input/Output | 8” ASME 300 lbs |
| Max. operating pressure | 40 bar |
| Max. operating temperature | 50 °C |
| Backflushable | Yes |
Parameters
- Filter Rating
- As requested
- Maximum Flow Rate
- Up to 5000 l/min
- Maximum Operating Pressure
- Up to 40 bar
- Maximum Operating Temperature
- up to 100 °C
Recommended Applications
- Process water
- Water management
