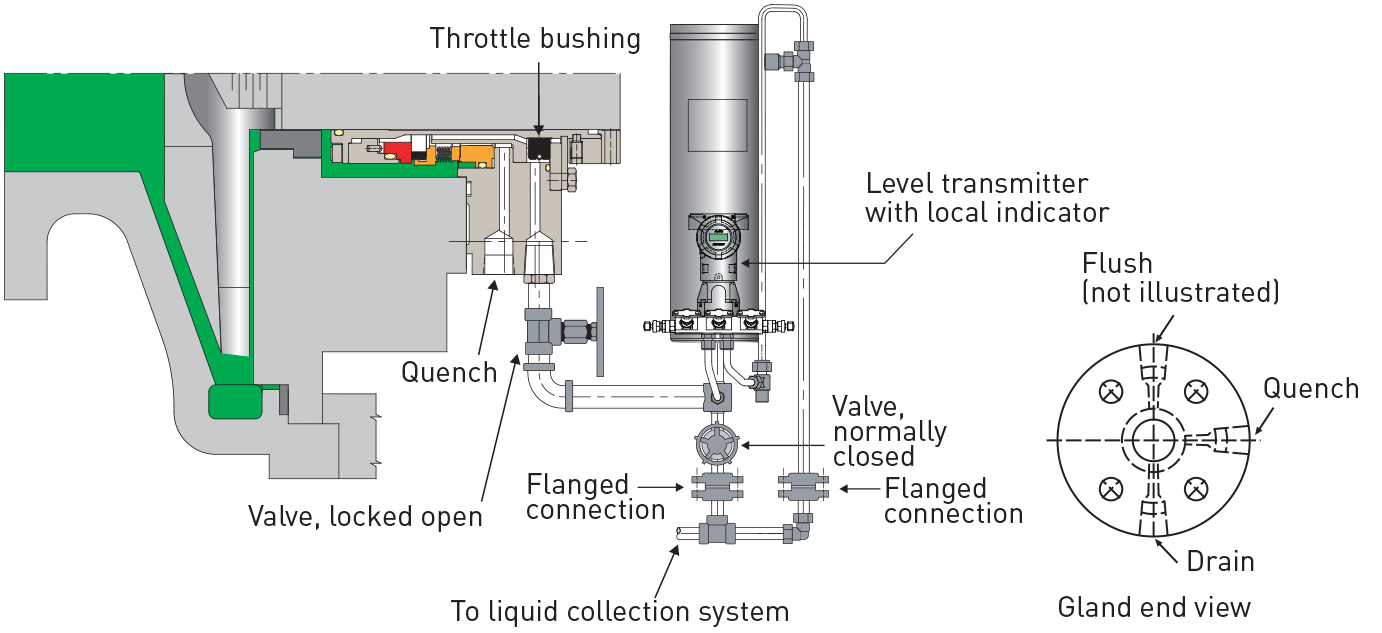

Plan 65B (Leakage Collection Pot)
Why do we use it?
- When we want to collect leakage from a mechanical seal and drain only when it a large volume has accumulated.
- When the leakage from the mechanical seal must be directed to a safe location
- When an indication of seal performance over time is required.
Advantages:
Provides an alarmed indication that can shutdown equipment if necessary.
General:
The system includes a loop to by-pass the isolation valve to prevent high pressure on the atmospheric side of the seal. The gland throttle bushing design should consider the fluid’s properties.
Seals applicable to this plan
Type 1604
Single Stationary API 682 Metal Bellows Cartridge Seal Type C, Arrangement 1
The Type 1604 high-temperature, high-performance Type C, Arrangement 1, API 682 qualified cartridge seal is designed for high-temperature applications such...
Type 1670
API 682 Category II and Category III, Type B, Arrangement 1 Single Rotating Metal Bellows Cartridge Seal
The Type 1670 is a factory pre-set edge-welded metal bellows API 682 qualified cartridge seal with Alloy C-276 (UNS N10276)...
Type 1648 O-Ring Pusher Seal
API 682-qualified, Single Cartridge, Type "A" O-ring Pusher Seal
The Type 1648 is a high-performance single cartridge pusher seal designed to help prevent emissions leakage in most refinery applications....
