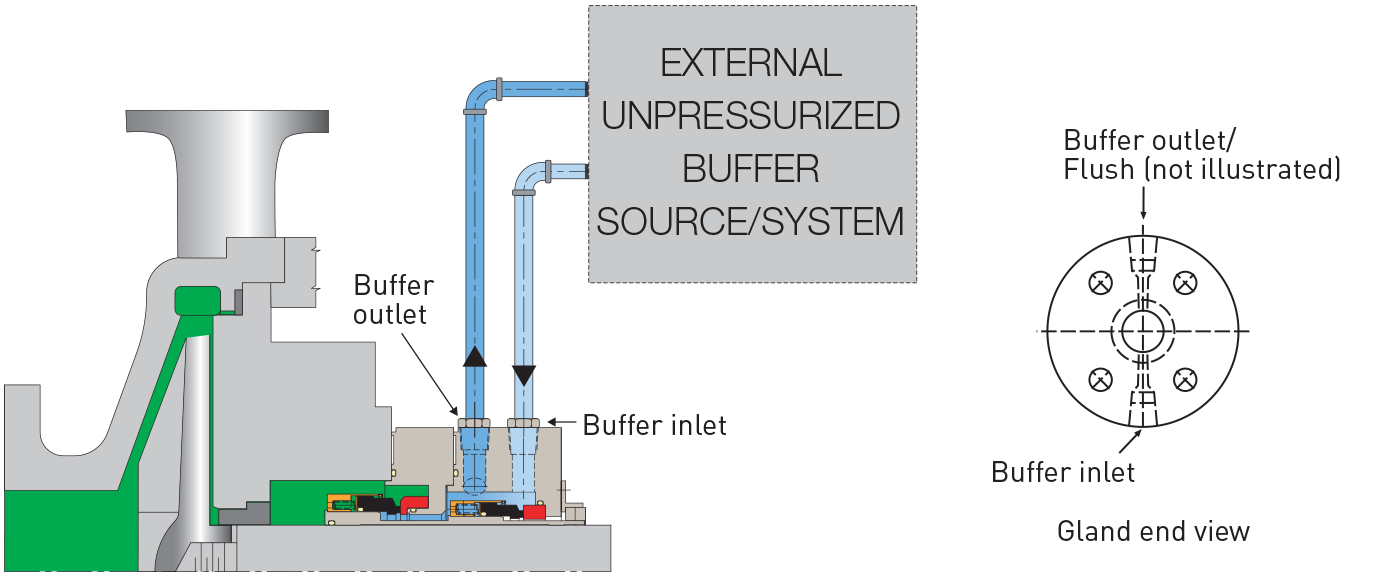

Plan 55 (External Buffer/Lubricator)
Why do we use it?
- When an arrangement 2 plan is required
- When an electrical power supply is available at the pump location
- When a pumping scroll cannot provide sufficient flow to cool the seal
- To supply multiple seals with a single system
- When process leakage into the system does not pose an environmental or health risk
Advantages:
Can provide unpressurized flow to multiple seal installations to reduce costs. Positively eliminates fugitive emissions to atmosphere.
General:
Plan 55 systems can be custom engineered to suit application requirements. Systems can range from the direct connection from other process streams to complex API 614 systems.
Seals applicable to this plan
Type 2609HTC/3609HTC Metal Bellows Cartridge Seal
Dependable API 682 Cartridge Seals
The Type 2609HTC and Type 3609HTC are dependable API 682 cartridge seals that utilize two impressive design innovations by...
Type 2609HTL/3609HTL Metal Bellows Seal
Dual Unpressurized and Pressurized Rotating Bellows Cartridge Seals (API 682 Type C, Arrangement 2 and 3)
Type 2609HTL is a dual unpressurized rotating bellows cartridge seal API 682 Type C, Arrangement 2. Type 3609HTL is a...
Type 2648 O-Ring Pusher Seal
API 682-qualified, Dual Unpressurized Cartridge, Type "A" O-ring Pusher Seal
The Type 2648 is a high-performance, low-emission cartridge seal designed to provide additional safety for hazardous applications and applications where...
Type 5620/5620P/5620VP O-Ring Pusher Seals
Universal Cartridge Seal Family — Dual Cartridge O-ring Seal
The first truly universal cartridge seal, the Type 5620/5620P/5620VP will change your approach to sealing. Since the 5600 Series components...
Type 5625P-1
Universal Cartridge Seal Family — API 682 Qualified Dual Cartridge Unpressurized/Pressurized Metal Bellows Seal
High-performance, low-emission, non-pusher seals, the Universal Cartridge 5600-1 Series is a modular cartridge seal family that includes interchangeable metal bellows...
