Plan 53B (Bladder Accumulator)
Why do we use it?
- When an arrangement 3 plan is required
- When the required barrier pressure is more than 10 bar (145 psi) where gas entrainment may be an issue
- When a supply of inert gas (N2) or a power supply is unavailable at the pump location
- When the shaft speed is too low for a non-contacting gas seal or the process is incompatible with gas injection
Advantages:
Should the loop be contaminated for any reason, the contamination is contained within the closed circuit. The make-up system can supply barrier fluid to multiple dual pressurized sealing systems.
General:

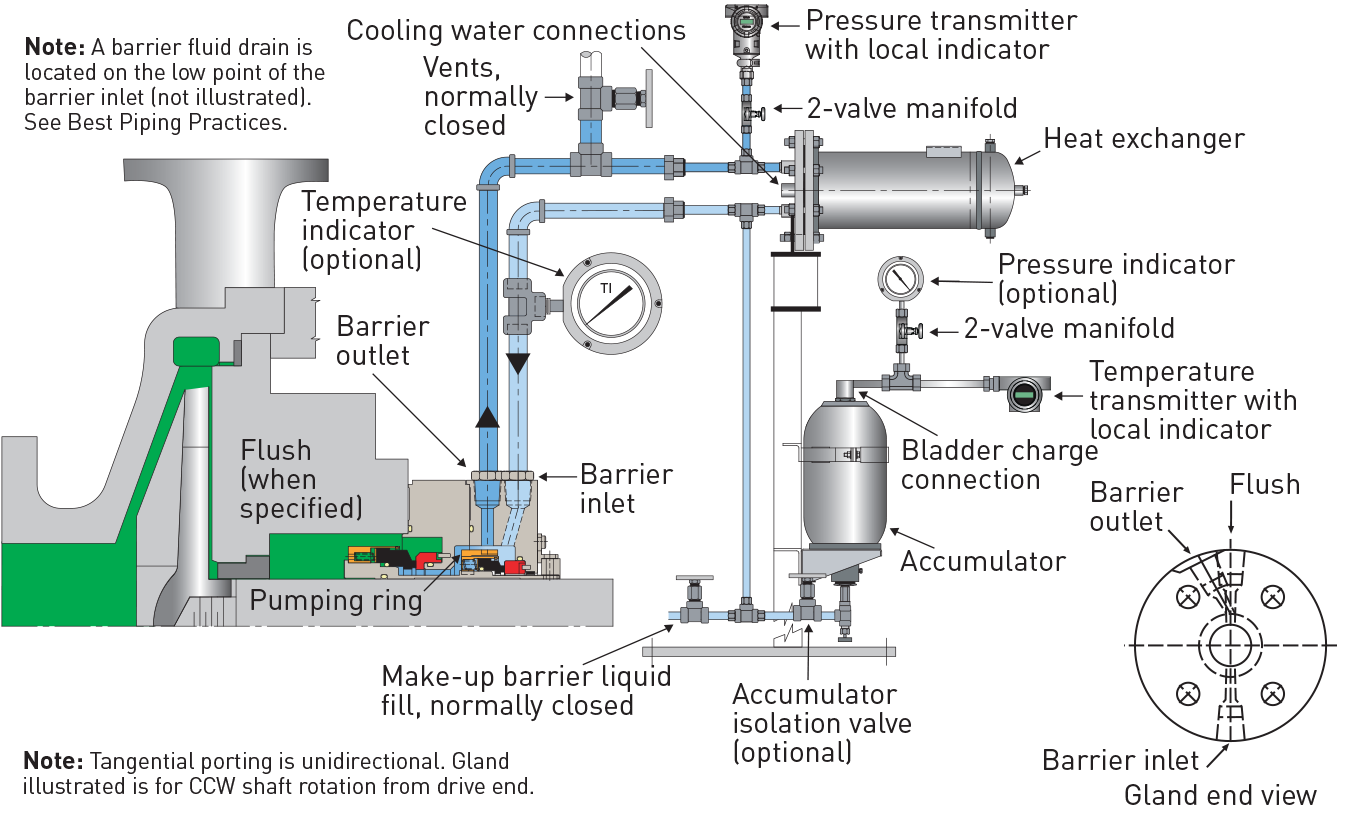

The bladder accumulator isolates the pressurizing gas from the barrier fluid to prevent gas entrainment. The heat exchanger can be water-cooled, finned tubing or an air-cooled unit, based upon the system heat load.
