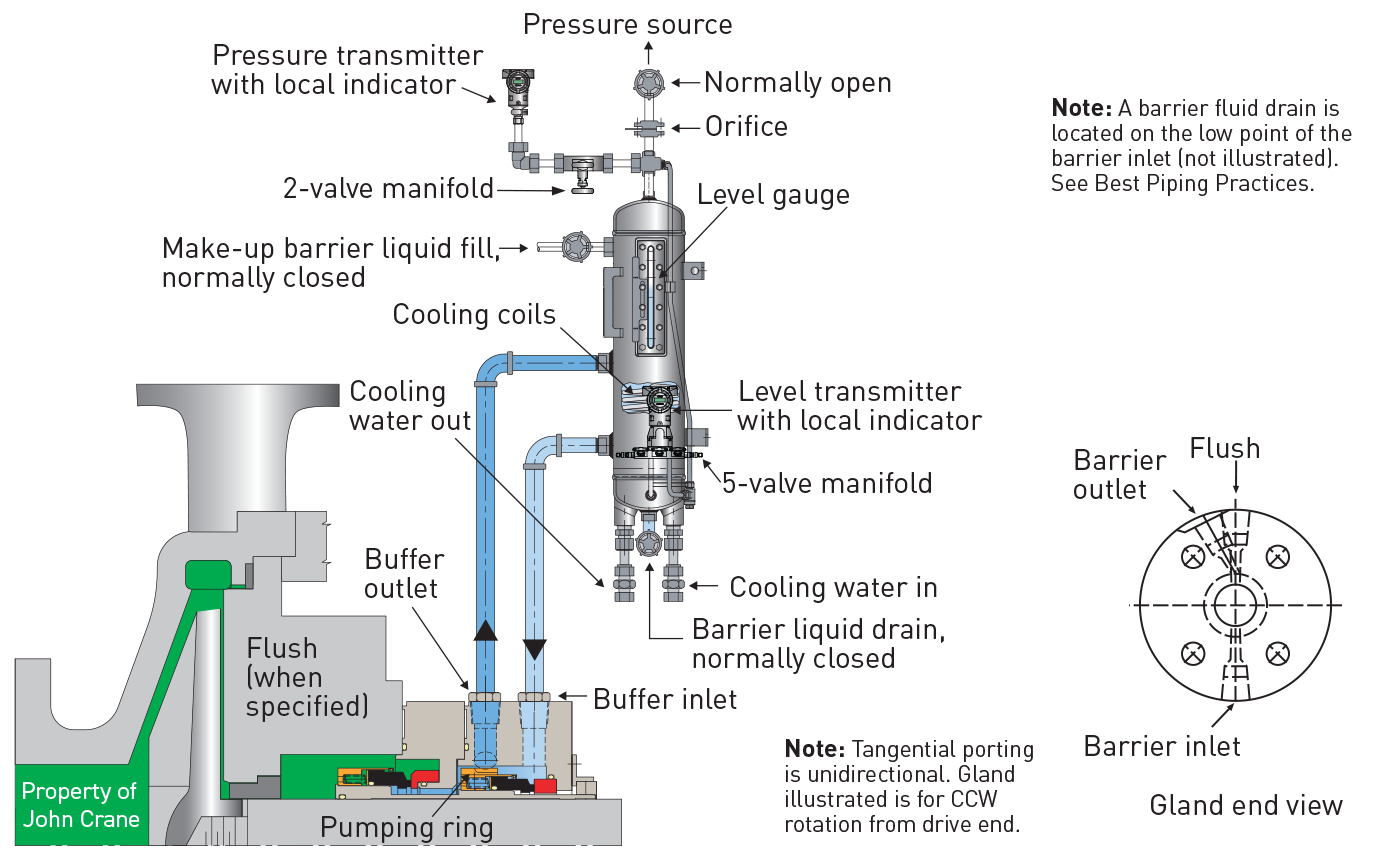

Plan 53A (Pressurised Vessel)
Why do we use it?
- When an arrangement 3 plan is required
- When the required barrier fluid is less than 10 bar (145 psi) to avoid gas entrainment
- When a supply of inert gas (N2) is available, above the required barrier pressure
- When the shaft speed is too low for a non-contacting gas seal or the process is incompatible with gas injection
Advantages:
Reservoir size can be optimized dependent on flow rate. Wear particles settle to bottom of reservoir and do not get recirculated.
General:
Heat is dissipated by reservoir cooling coil. Barrier fluid is subject to gas entrainment at pressures/temperatures above 21 bar(g)/300 psi(g) and 120°C/250°F. While API 682 4th edition suggests a limit of 10 bar(g)/150 psi(g) to avoid gas entrainment, properly selected barrier fluids can be used to the limit suggested above.
