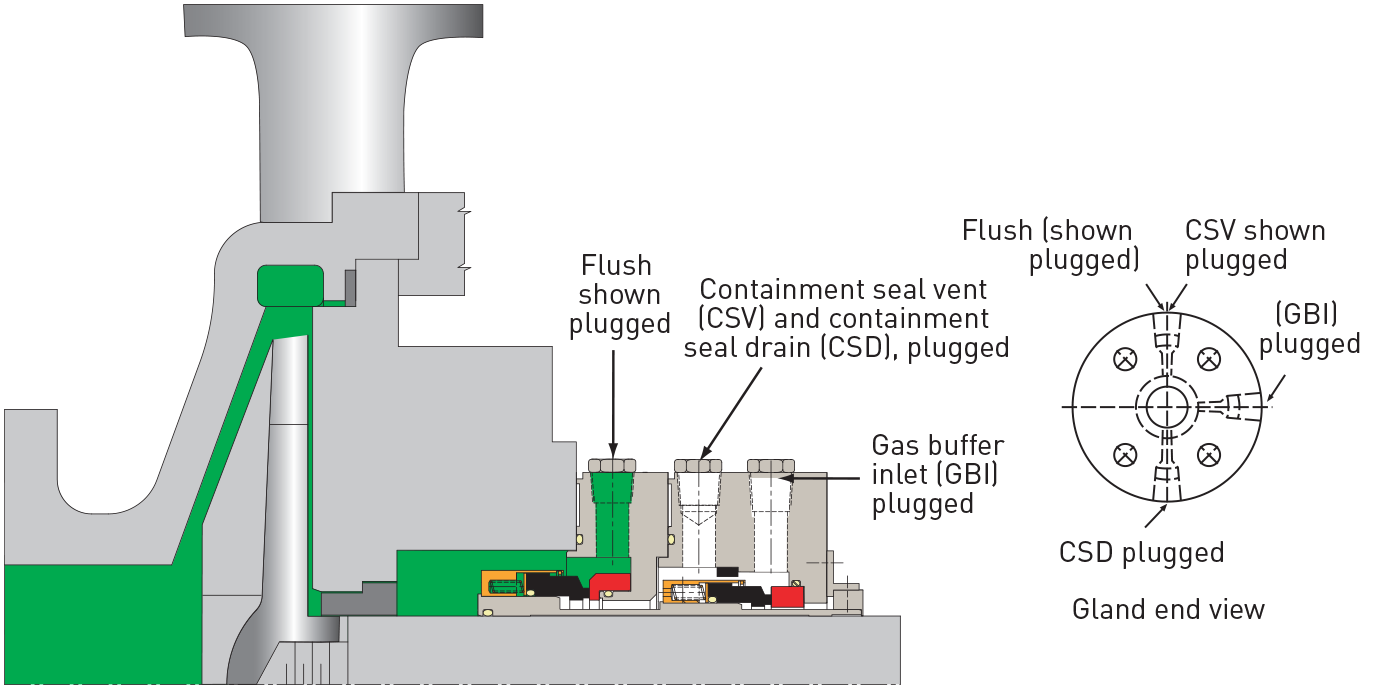

Plan 71 (Buffer Connections)
Buffer/Barrier
Tapped connections for purchaser’s use. Typically this plan is used when the purchaser may use buffer gas in the future.
Why do we use it?
- When an arrangement 2 plan is required
- When a leakage collection system is not currently required, but may be added in the future
- When the outboard seal may require additional protection against inboard seal leakage in the future
- When an inert gas (N2) supply is available or could be made available in the future
Advantages:
Allows the user to add a buffer gas in the future.
