H-M

High-performance coplanar couplings for turbomachinery with overload torque requirements.


  • video icon

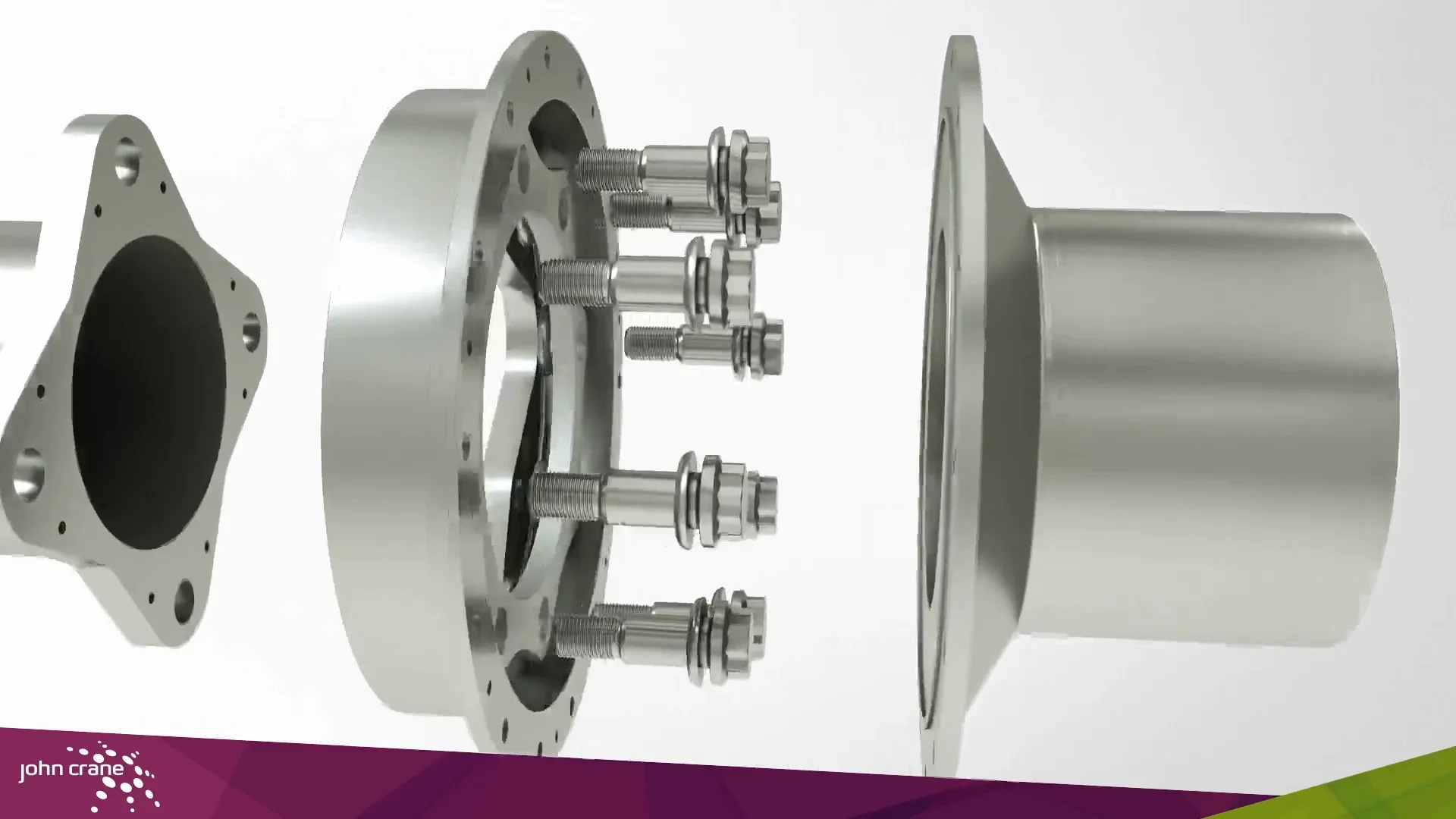

John Crane’s Metastream® H-M couplings provide optimal power to weight in API 671 applications with overload torque requirements, by incorporating two technologies in one coupling for greater operational efficiency and improve reliability. This advanced design is able to withstand up to 2 times rated torque caused by unexpected overload conditions.

Request a callback View Technical Specification View IOM View Product Description

  • video icon

Recommended for You

Features

  • California Residents: PROPOSITION 65 WARNING
  • Large hub-bore capacity
  • Factory-assembled transmission unit
  • High-reliability stainless steel flexible membrane design
  • Torque-overload feature protects membranes and drive bolts
  • Low mass and low overhung moment
  • Optional shrouded bolts
  • Axial shims for length adjustment, when required
  • API 671 (ISO 10441) compliant
  • ATEX compliant

Parameters

Maximum Rating
24,672 kW/1,000 rpm (3,301 HP/100 rpm)
Maximum Continuous Torque
235,621 Nm (2,085 lb.in x 103)
Maximum Peak Torque
400,556 Nm (3,545 lb.in x 103)
Maximum Speed
26,000 rpm
Maximum Bore
350 mm (14")

Recommended Applications

  • Turbo compressor machinery
  • Screw Compressors
  • Gas turbines
  • Steam turbines
  • Generator Sets
  • Marine turbine main propulsion
  • Other rotating equipment
