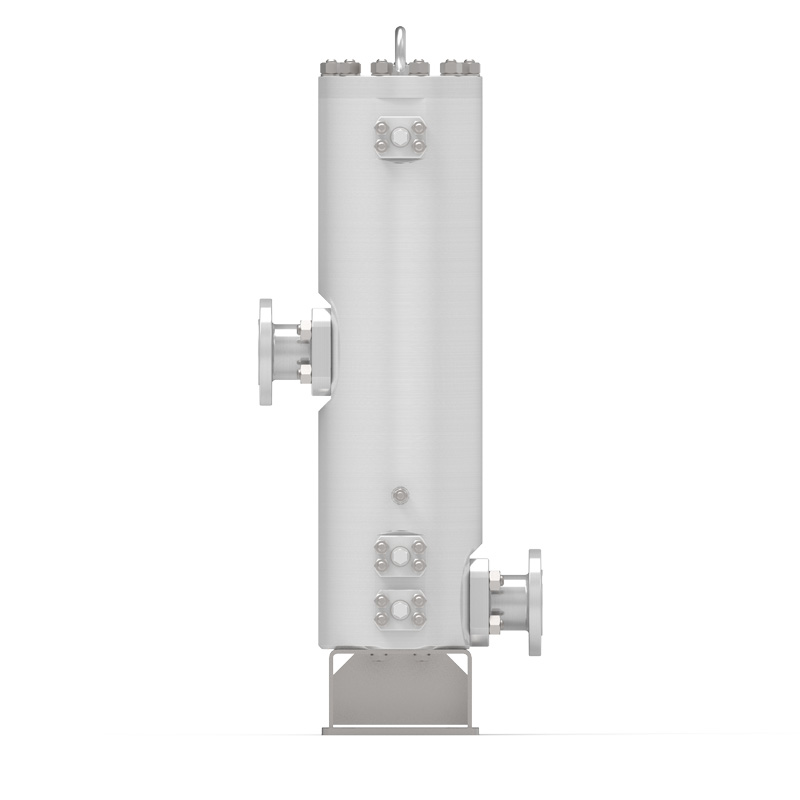

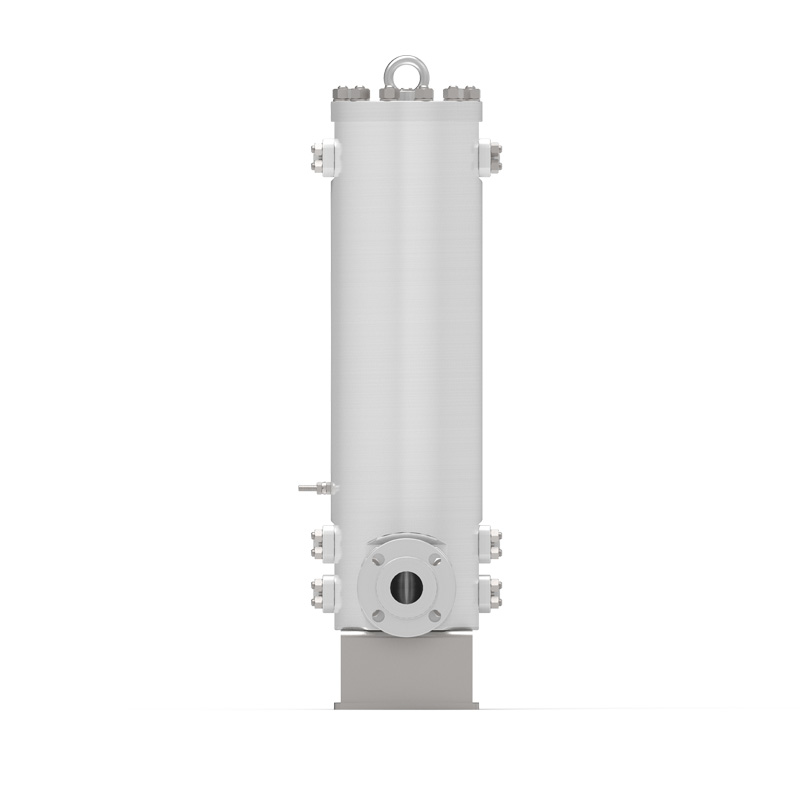

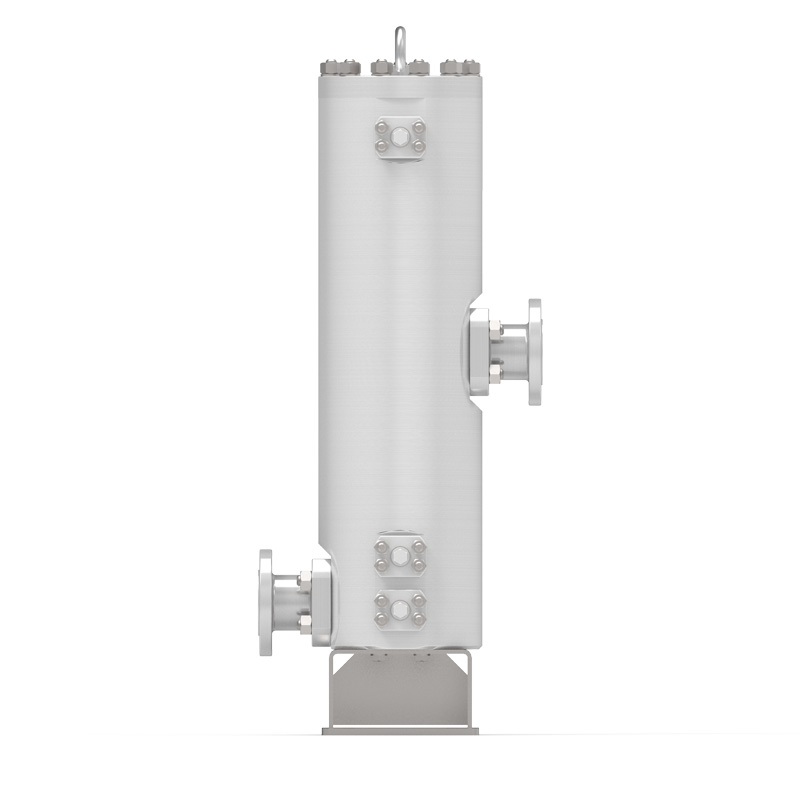

Simplex Filter for Marine Fuels
Filtration for Engine Fuel Valve Trains (FVT)
John Crane’s Simplex filters installed on the Fuel Valve Train (FVT) of dual fuel marine vessels are designed to capture particles from the fuel before it enters the engine and generator. By ensuring the fuel is clean, the filter prevents damage to the fuel injectors and other critical engine and generator components, thereby promoting smooth and reliable operation. Compliance with marine classification societies ABS, BV, DNV, LR, Class NK, CCS.
John Crane's Indufil modular building principle — using machined parts from forgings — offers high flexibility and a compact design that provides plug-and-play solutions for retrofits and upgrades.
×
Recommended for You
Features
- Highly efficient and high-capacity filter elements
- Robust and proven design
- Filtration fineness down to 3 micron and efficiencies up to 99.9% (ß>1000)
- Plug-and-play filtration unit
- Inlet and outlet sizes up to 6" internal diameter
Parameters
- Standard Materials:
- Stainless steel 316(L) Higher-grade materials such as UNS S 31803, UNS S32750 and Inconel alloys.
- Temperature Limits:
- -94°F to 428°F/-70°C to 220°C
- Pressure Limits:
- 5990 psi(g)/413 bar(g) for standard 316 (L)
- Certified to:
- Pressure Vessel codes: ASME VIII Div. 1, PED, etc. Explosion safety: ATEX Ex II 2G, IECEx Ex II, etc. Marine & Offshore: ABS, BV, DNV, LR, Class NK, CCS, etc. Optional: U-stamp, TR-CU, ML, Dosh, NR13, ARH, AS1210, CRN, etc.
- Maximum flow rate:
- Sizing based on maximum pressure drop and dirt holding capacity required
Recommended Applications
Fuel Valve Train of marine vessels
- Methanol
- Ammonia
- LPG
- Ethane
- Other liquid fuels
