Filter Discs

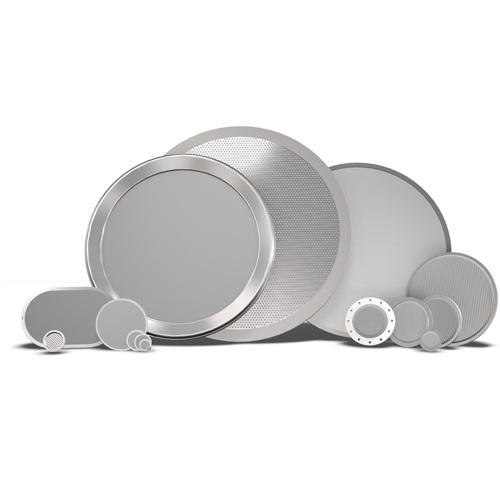

John Crane’s Seebach® filter discs are flat, single or multilayer packages of filter media with sealed edges. These are used essentially as “screens” in a line, e.g. in the melt filtration in so-called screen changers. John Crane’s Seebach filter discs are produced in “flat” or “pleated” versions.
Recommended for You
Features
| ID | 10010 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | edge compressed |
| Filter medium | wire mesh |
| Outer diameter | 19 mm |
| Filter rating | 50 μm |
| Material | 1.4404 |
| ID | 10115 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | welded |
| Filter medium | wire mesh |
| Outer diameter | 15 mm |
| Filter rating | 500 µm |
| Material | 1.4301 |
| ID | 10120 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 140.5 mm |
| Filter rating | as requested |
| Material | 1.4301/3.0255 |
| ID | 10216 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | as requested |
| Outer diameter | 134,5 mm |
| Filter rating | as requested |
| Material | 1.4301 |
| ID | 10339 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 550 mm |
| Filter rating | as requested |
| Material | 1.4404 |
| ID | 10388 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 33.5 mm |
| Filter rating | 10 µm |
| Material | 1.4301 |
| ID | 10389 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 48 mm |
| Filter rating | 10 µm |
| Material | 1.4301 |
| ID | 10390 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | as requested |
| Outer diameter | 58 mm |
| Filter rating | as requested |
| Material | 1.4301 |
| ID | 10521 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | as requested |
| Outer diameter | oval |
| Filter rating | as requested |
| Material | 1.4301 |
| ID | 10525 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 269.3 mm |
| Filter rating | 100 µm |
| Material | 1.4301 |
| ID | 10537 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 670 mm |
| Filter rating | as requested |
| Material | 1.4404 |
| ID | 10705 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | as requested |
| Filter rating | 1.4301 |
| Material | 10705 |
| ID | 10706 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 140 mm |
| Filter rating | as requested |
| Material | 1.4301 |
| ID | 10714 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 60 mm |
| Filter rating | 15 µm |
| Material | 1.4301 |
| ID | 10719 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | welded |
| Filter medium | sintered metal fibre |
| Outer diameter | 58.5 mm |
| Filter rating | 40 µm |
| Material | 1.4301 |
| ID | 10785 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 559 mm |
| Filter rating | 10 µm |
| Material | 1.4404 |
| ID | 10809 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | wire mesh |
| Outer diameter | 140 mm |
| Filter rating | 15 µm |
| Material | 1.4301 |
| ID | 10825 |
| Type | Filter disc |
| Execution | pleated |
| Joining method | rimmed |
| Filter medium | sintered metal fibre |
| Outer diameter | 148 mm |
| Filter rating | as requested |
| Material | 1.4301 |
| ID | 11092 |
| Type | Filter disc |
| Execution | cylindrical |
| Joining method | rimmed |
| Filter medium | as requested |
| Outer diameter | 144.5 mm |
| Filter rating | as requested |
| Material | 1.4301 |
Parameters
- Filter Rating
- As requested
- Filter Medium
- Sintered metal fiber or laminated mesh
Recommended Applications
- Polymer extrusion
- Polymerization
- Compounding
- Fiber production
- Film production
- Recycled polymers
- Membrane production
- Cable sheathing
