CIP Star-Shaped Elements
John Crane’s Seebach® CIP (clean in place) elements are used in the chemical, cosmetic, and pharmaceutical industries. They are fully welded cylindrical filter elements which are made of a special filter material (wire mesh laminate). Folding (pleating) is not possible due to the properties of the material; therefore we choose a special bending technique that leads to a star-shaped geometry.
Recommended for You
Features

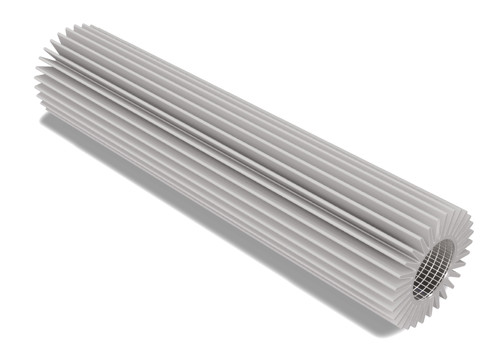

| ID | 10223 |
| Type | CIP elements |
| Execution | pleated |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 180 mm |
| Filter rating | 5 µm |
| Material | stainless steel AISI 316 |

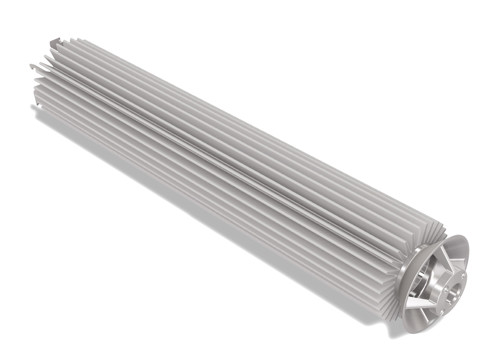

| ID | 10254 |
| Type | CIP elements |
| Execution | pleated |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 180 mm |
| Filter rating | 5 µm |
| Material | stainless steel AISI 316 |

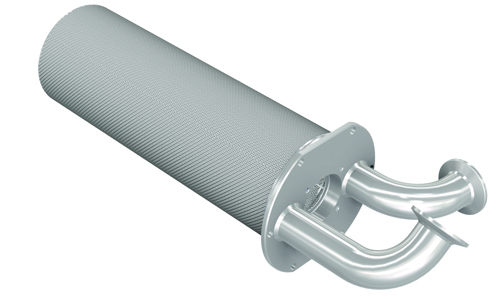

| ID | 10695 |
| Type | CIP elements |
| Execution | cylindrical |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 105 mm |
| Filter rating | 5 µm |
| Material | stainless steel AISI 316 |
| ID | 10936 |
| Type | CIP elements |
| Execution | pleated |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 330 mm |
| Filter rating | 5 µm |
| Material | stainless steel AISI 316 |

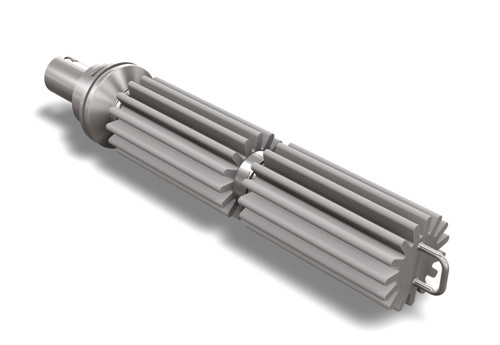

| ID | 10952 |
| Type | CIP elements |
| Execution | pleated |
| Joining method | welded |
| Filter medium | laminated mesh |
| Outer diameter | 80 mm |
| Material | stainless steel AISI 316 |
Parameters
- Type
- CIP elements
- Standard Materials
- Stainless steel
- Filter Medium
- Wiremesh laminate, pleated and welded
- Filter Rating
- 2-10 µm
Recommended Applications
- API liquefaction, granulation and drying
- Fluidized bed systems
- Vacuum conveyor systems
- Granulation and coating processes
- Pharmaceutical manufacture
