Liquid Fuel Filtration
Liquid Fuel Purification Equipment
John Crane’s Indufil® complete liquid fuel filtration systems are fitted as standard to many leading brands of gas turbines. Adequate filtration of liquid fuel is essential to reaching the high levels of reliability demanded by modern applications, whether on board a ship or on a land-based power generation application.
John Crane’s Indufil patented elements remove water and particle contamination and maximize the reliability of operation engines.

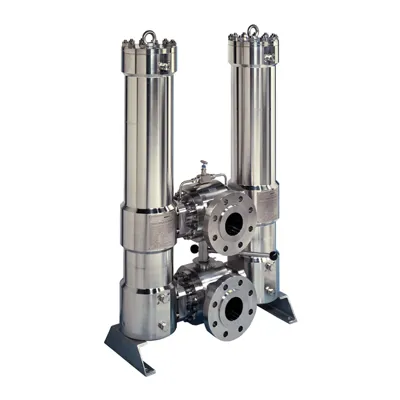

Since liquid fuels can be heavily contaminated, John Crane’s Indufil liquid fuel filtration equipment incorporates filter elements with high dirt-holding capacities to increase the mean time between change out. We've designed our standard liquid fuel filters in duplex configuration with leak-free transfer valves to provide continuous filtration of liquid fuel and a safe changeover mechanism.
Recommended for You
Features
- California Residents: PROPOSITION 65 WARNING
- Inlet and outlet connections up to 14" in diameter
- High dirt-holding capacity to increase filter element lifetime

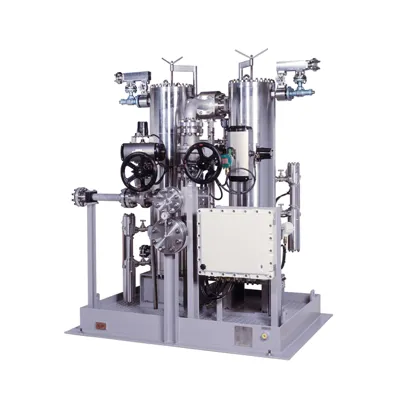

- Skidded systems available with standard control and monitoring instrumentation hardwired to an on-skid terminal box
- Indufil-designed and -manufactured transfer valves with zero leakage
Parameters
- Standard Materials
- Carbon steel A105/A106
Stainless steel 304/316(L)
Higher-grade materials - Pressure Limits
- 1,450 psi(g)/100 bar(g)
- Certified to
- ASME VIII — U-stamp
European PED — CE mark
Chinese Manufacturing License
Russian GOST compliance
Brazilian NR-13
Australian AS1210
Others
Recommended Applications
- Gearboxes
- Steam turbines
- Gas turbines
- Centrifugal compressors
- Other compressors
- Driven machinery
- Other rotating equipment
- Generators
- Valves
- High-temperature hydrocarbons
- Low-temperature fluids
- Oil and gas (refineries)
- Petrochemicals
- Power generation
- Turbo compressor machinery
- Volatile organic compounds
- Wide range of applications requiring high reliability across oil and gas, chemical and general Industry, and high-purity and organics
