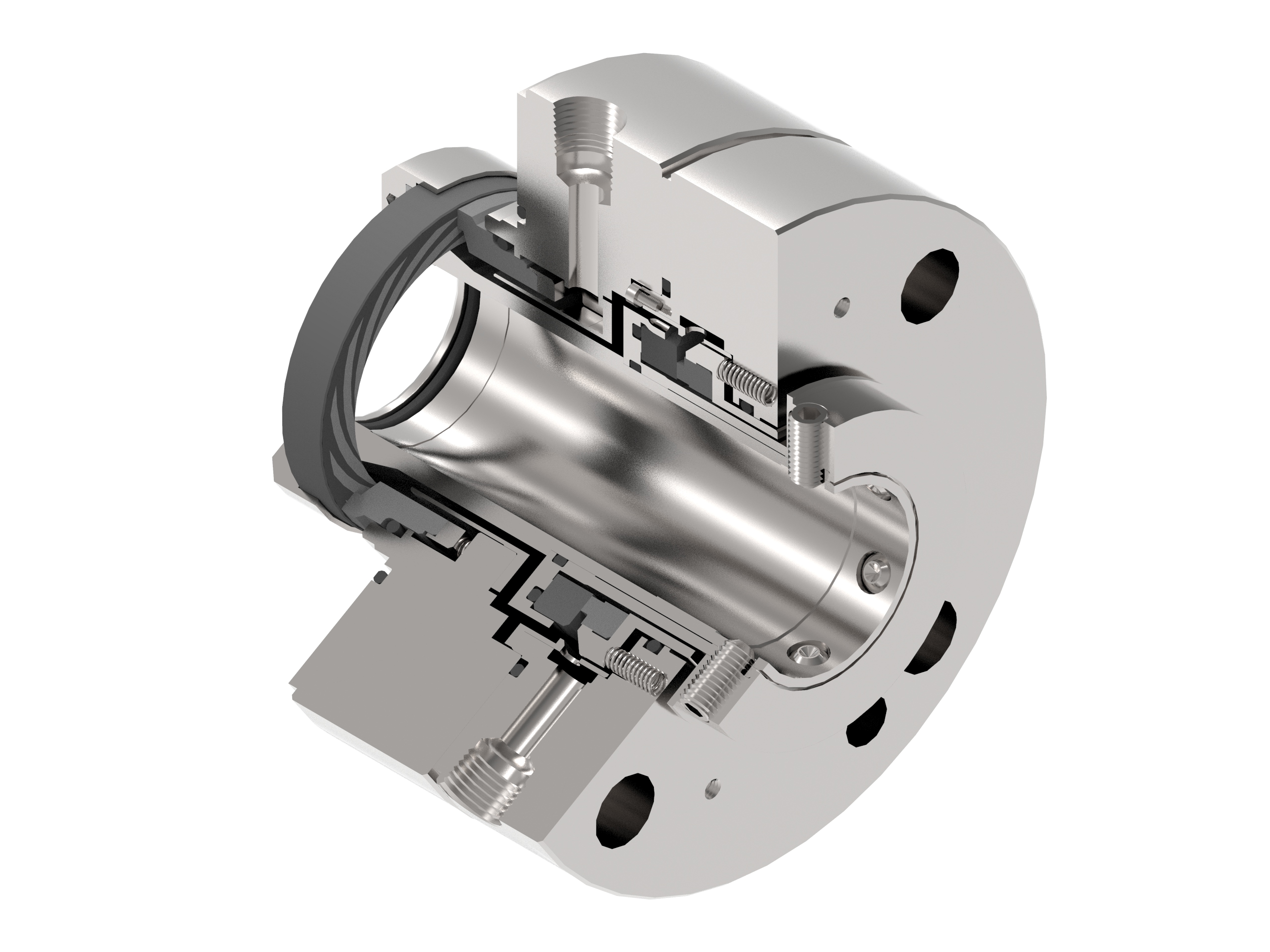

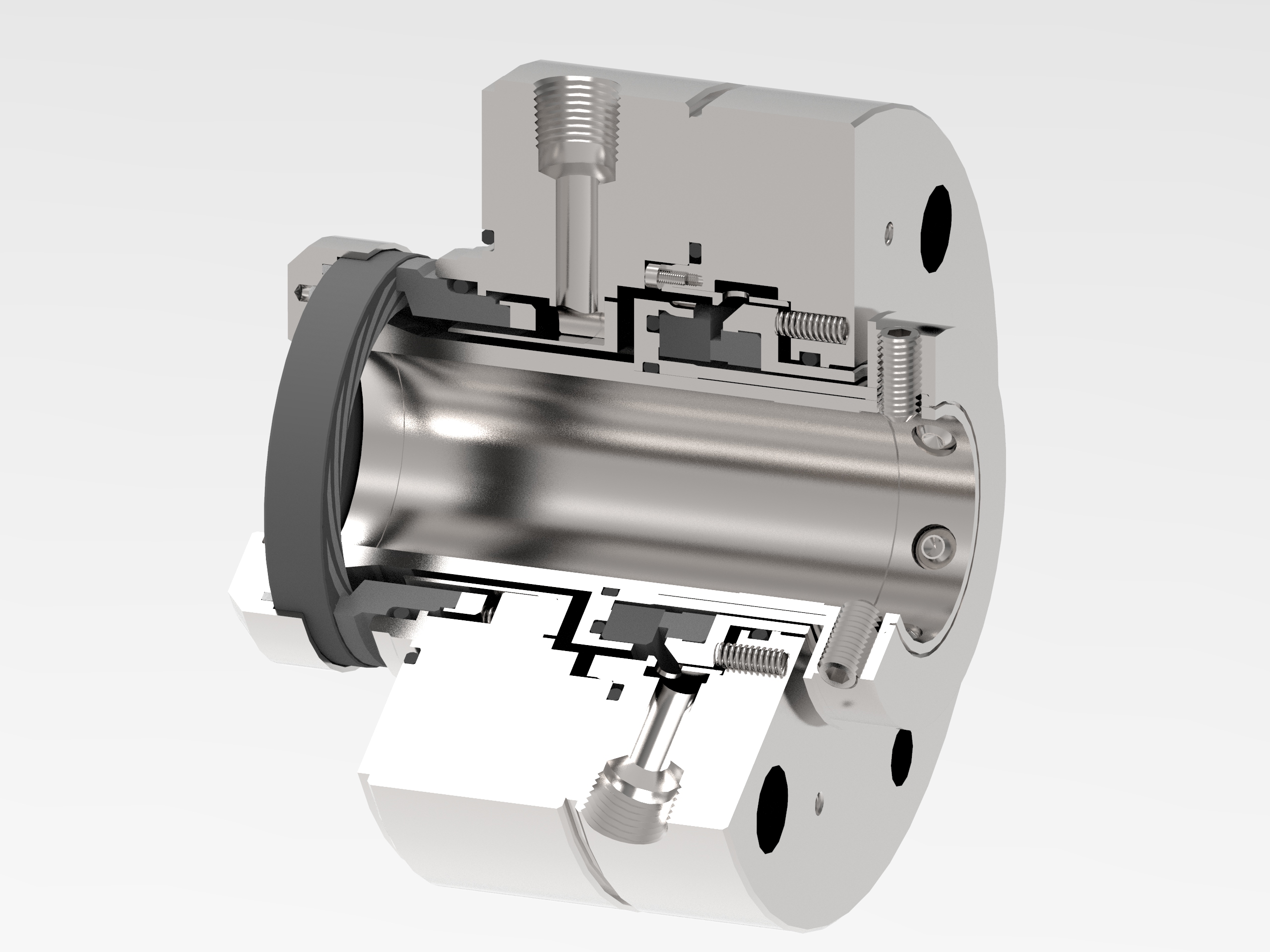

Type 588 USP
Cartridge slurry seal with Upstream Pumping
The Type 588 USP (Upstream Pumping) is purpose-built for challenging applications involving solids in suspension or solution. It delivers reliable performance across various industries—including refineries, chemical and petrochemical processing, water treatment, mining, and pulp and paper.
Designed to fit API 610 pumps, the 588 USP combines a dual-balanced inboard seal with a secondary balanced outboard pusher (SBOP) outboard head in a compact cartridge format for added reliability. It uses patented spiral groove technology to circulate a product-compatible barrier fluid upstream, reducing emissions and protecting seal faces. This technology also helps nearly eliminate water consumption, improves reliability and lowers power requirements.
The 588 USP Upstream Pumping seal combines the environmental protection of a pressurised double seal arrangement with the inherent safety and simplicity of a tandem seal arrangement, providing a safe, efficient sealing solution for demanding process conditions.
Recommended for You
Features
- Non-contact face sealing for abrasive, low-lubricity, and multiphase fluids
- Spiral groove technology pumps barrier fluid upstream to prevent leakage
- Low heat generation improves seal reliability and extends service life
- Minimal process exposure with out-of-process springs and centrifugal solids control
- Robust drive design with sleeved mating ring drive pins for durability
Parameters
- Sizes Range
- 30mm to 150mm / 1.187" to 5.875"
- Pressure
- 42 barg / 609 psig
- Temperature
- 80°C / 176°F
- Speed
- 2.5 m/s to 25 m/s / 500 fpm to 5000 fpm
