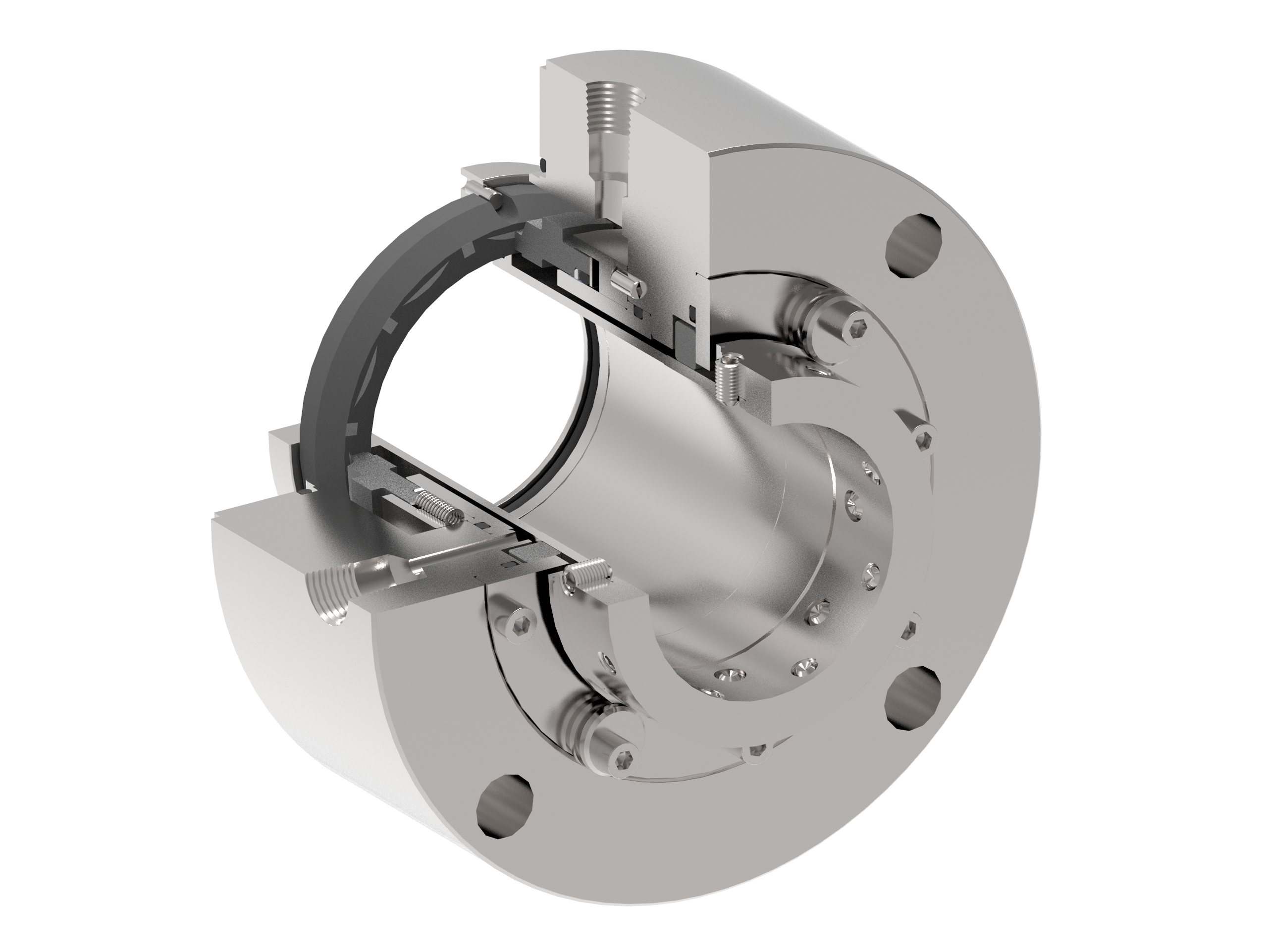

Type 48VXP O-ring pusher seal

Name: Type 48VXP O-ring pusher seal
Brand: John Crane

High-pressure sealing for demanding light hydrocarbon applications

The Type 48VXP is a high-duty, multi-spring O-ring pusher seal designed for demanding light and flashing hydrocarbon applications. It can operate at pressures beyond the scope of API 682, particularly in applications where operating conditions are close to the sealed fluid’s vapour pressure.

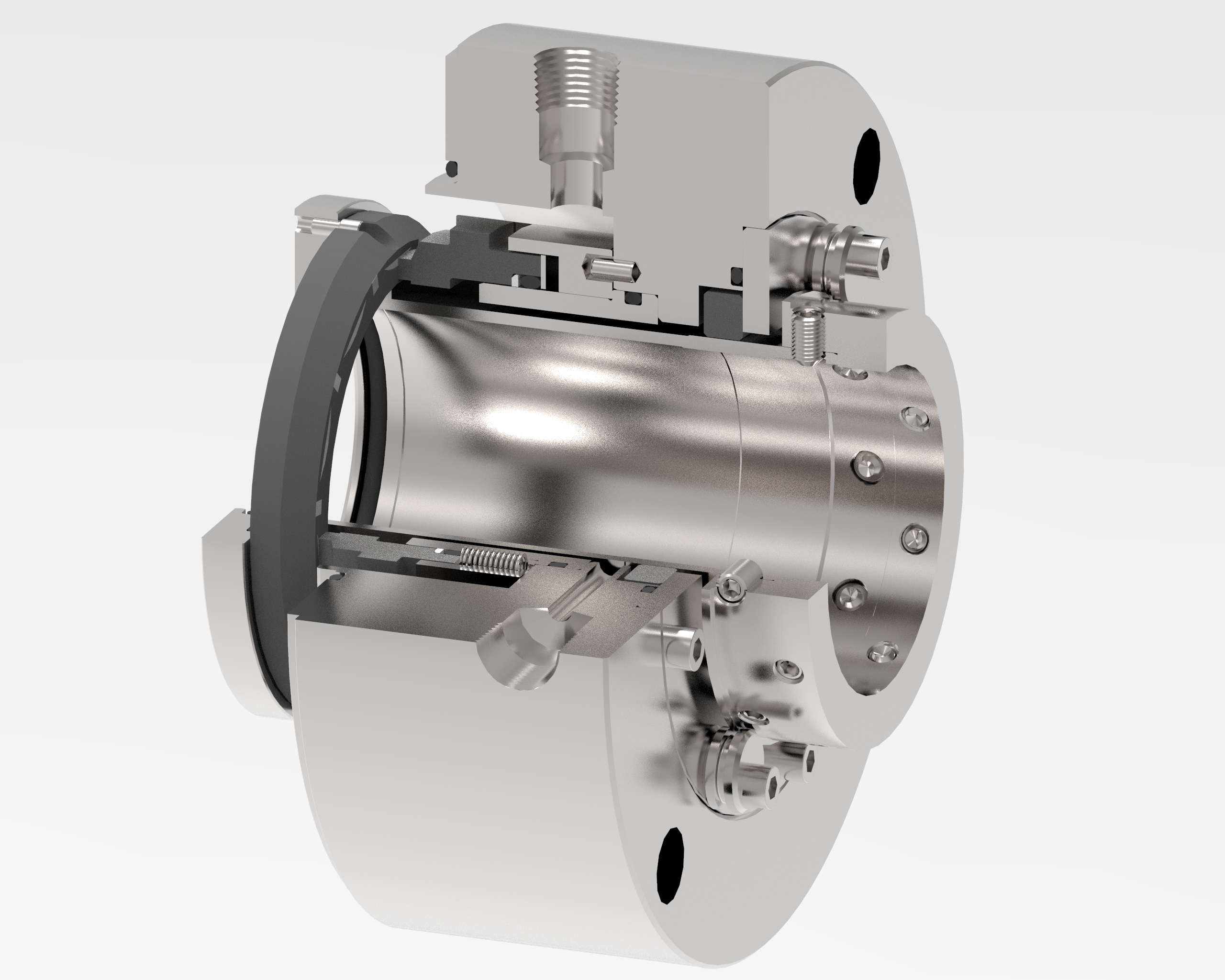

John Crane LaserFace® technology helps to enhance mechanical seal face lubrication, while controlling leakage, helping reduce wear and improve reliability in low vapour pressure margin services. The balanced design supports high-pressure operation and is available in single or dual-unpressurised cartridge arrangements. Rotating seat and rotating head configurations help meet specific equipment requirements.

Request a callback Documents

Features
Parameters
Recommended Applications
Documents
Works With

Features

California Residents: PROPOSITION 65 WARNING.
Balanced construction with an anti-extrusion ring permits operation at higher pressures.
Optimised ear drive design helps increase drive torque capability.
O-ring design accommodates a range of light hydrocarbons through a choice of materials.
Standardised seal heads and mating rings are available for single or dual-unpressurised cartridge arrangements.
LaserFace® technology to create reliable fluid film between seal faces while controlling minimal leakage.
Optimised seal face design provides reliability with vapor pressure margins beyond the scope of API 682 applications.

Parameters

Temperature limits: -40°C to 205°C (-40°F to 400°F)
Pressure limits: Up to 84 barg (1,218 psig) dynamic seal pressure
Up to 99 barg (1,440 psig) static seal pressure
Speed limits: Up to 38 m/s (7,480 fpm) for the rotating seat arrangement
Up to 25 m/s (5,000 fpm) for the rotating head arrangement
or up to 6,000 rpm, whichever is lower

Performance limits depend on the mechanical seal design, size, materials and sealed fluid. Contact John Crane to confirm the limits for a specific application.
